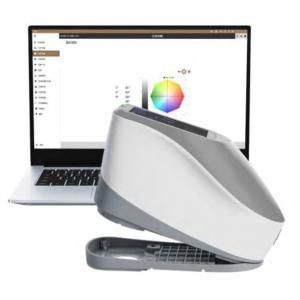

Spectro Densitometer One-Key To Measure Density For Cmyk&Color Lab Value
Model: YD5010-Plus
1. Introduction:
Under the 45/0 geometric optical illumination and the testing conditions of M O, M 1, M 2 ,M 3 stipulated by lSO 13655 standard, the instrument canaccurately measure the reflectance data of samples. Under multiple colorspaces,it can accurately measure various printing density indexes, colordifference formulas and color indexes, and can meet the user's regulartesting of various parameters.
2. Product Features:
1. Perfect combination of the beautiful appearance and the ergonomic structure design.
2. Combined LED light sources with long life and low power consumption, including UV light.
3. Switchable apertures: 2/4/8mm, adapt to more samples.
4. Accurately measure reflectance spectrum, CMYK density and Lab value of the sample.
5. High-confguration electronic hardware: 3.5-inch TFT true-color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS image sensor, etc.
6. Two standard observer angles: 2/10, multiple light source modes and color systems.
7. USB mode can extend more function.
8. Large-capacity storage space, over 10,000 test data.
9. Especially suitable for process control and quality control of printing factory.
10. PC software has powerful function expansion.
3. Specification Parameter:
| Model | YD5010-Plus |
| Light Source | Combined LED source,UV light |
| Spectral mode | Concave-Grating |
| Sensor | 256-pixel dual-array CMOS image sensor |
| Wavelength range | 400~700nm |
| Wavelength pitch | 10nm |
| Half bandwith | 10nm |
| Observer Angle | 2°/10° |
| Measuring time | Approx.1.5s |
| Measurement method | single measurement, average measurement
(2-99 times) |
| Size:L*W*H | 184X77X105mm |
| Weight | Approx.600g |
| Battery life | lithium battery,
5000 times of using after charging for 8 hours |
| Lighting source life | 5 years, more than 3 million measurements |
| Display screen | TFT true color 3.5 inch |
| Touch Screen Interface | USB |
| Storage | 10,000 |
4. Application Industry:
It is widely used in ink, printing, him processing, textile dyeing, plastic electronics and other industries for accurate color measurement and quality control, as well as in scientific research institutions, quality testing institutions, laboratories: especially suitable for precise measurement and quality control of optical density and dot enlargement in ink printing.
